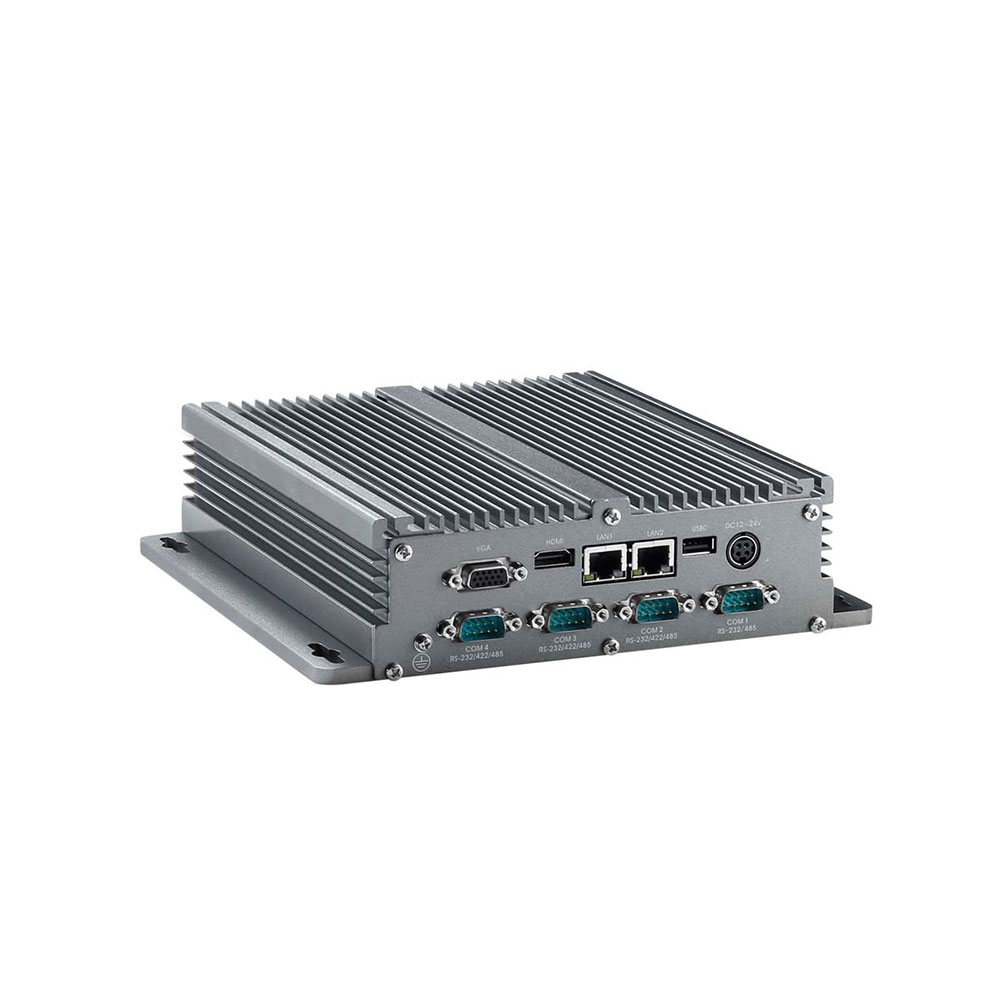

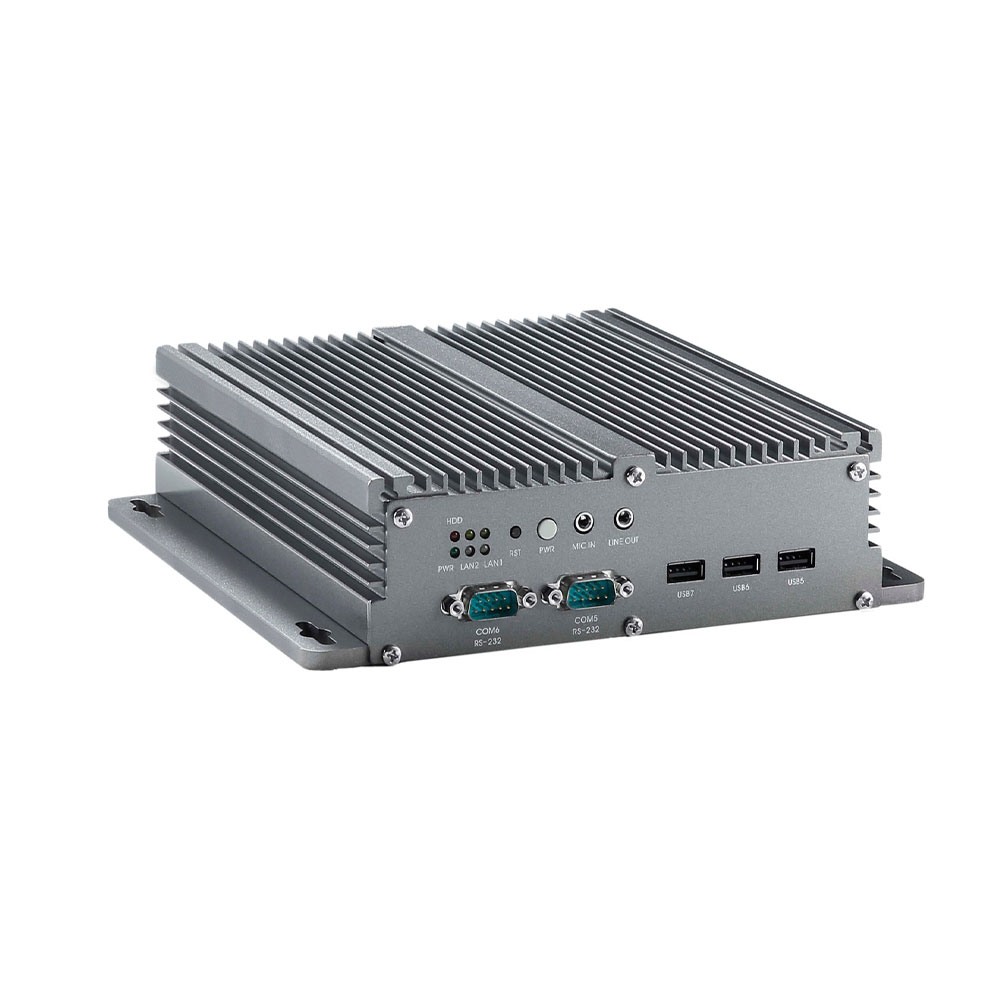

ABOX-6512

處理器：D525
規 格：6個串
類別：嵌入式工控機

詳細信息

CPU：板載 Intel Atom D525 GPU
芯片組：Intel 82801+ICH8-M
內存：板載2.0GB
I/O端口：2*LAN,1*HDMI,1*VGA,1*音頻,4*USB
串口：6個串口（2*RS-232,1*RS-232/485,3*RS-232/422/485）
看門狗:256級,可編程時間到中斷、時間到系統復位
存儲空間:1*2.5"SATA盤位,1*mSATA,1*CF槽位(可選購）
擴展總線:1個標準PCI-104總線接口
擴展槽位:無
輸入電源:DC_12~24V
產品尺寸:220*205*57mm（W*D*H)

Model No.	ABOX-6512
Processor System	CPU	Intel Atom® Processor D525 (1M Cache, 1.80 Ghz)
	Chipset	Intel® 82801HBM(ICH8-M)
	BIOS	8Mb AMI BIOS
Memory	Max. Capacity	On-board 2GB DDR3 Memory
Graphics	Controller	Intel®GMA3150
Ethernet	LAN	2*10/100/1000 Mbps Ethernet Controller, Support PXE/WOL
Audio	Interface	HD Audio ,1Line-out, 1 Mic-in
Storage	HDD	1 x SATA HDD Bay for 2.5"
		1 x mSATA
		1*CF Slot (Optional)
Expansion Slot	NO	No
External I/O Interface	Serial Port	2RS-232, 1RS-232/485, 3*RS-232/422/485
	SIM	1*SIM Slot (Optional)
	USB	4*USB
	Audio	1*LINE OUT & MIC
	LAN	2*RJ45
	Display	1VGA, 1HDMI
Watchdog	Watchdog timer	Programmable 256 levels timer interval, setup by software
Power Requirements	Power Input Votage	DC_IN 12~24V
	Power Adapter	AC-to-DC Adapter, DC12V/5A 60W (Optional),with DC Jack Plug
	Power cable	With plug USA type/ Europe type/UK type (by requirement)
Software Support	Microsoft Windows	XP,Win7/8/10，windows 2008
Software Support	Linux	Support (by project)
General	Dimensions (W x Dx H)	220 x 205 x 57mm
	Case Colour	Iron gray
	Mounting	Stand/ Wall
	Enclosure	Aluminum Housing
	Thermal Solution	Fanless
Environment	Operating Temperature	-20 ~ 60°C
	Storage Temperature	-40 ~ 80°C
	Relative Humidity	5~ 95% (non-condensing)
